Wiring up the Yihi SX350?

[murdurturtle]

I got my sx350s today and I'm a little confused as to how I should go about wiring this...

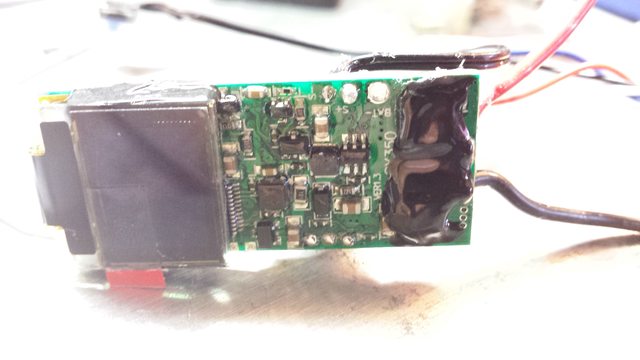

The switch is already wired.. as well as the charger. I put a battery to the red and black leads and the chip powered up fine. I was able to go through menus and such. So I'm guessing that the white is the positive for the 510 connector? There is one unused hole that is marked "bat-" is that what I'm suppose to use as ground for the 510 connector?

Thanks guys

•
•



[murdurturtle]

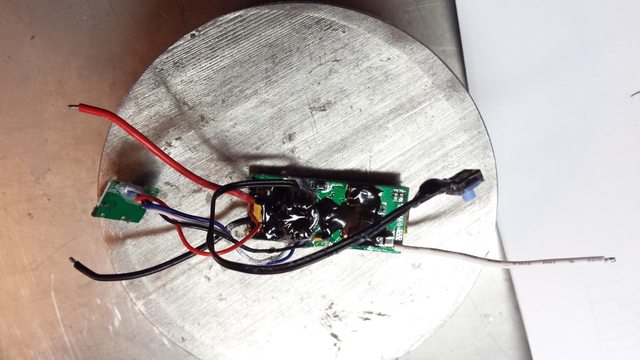

I ended up just wiring up the bat- wire and connecting it to the negative part of the 510 connector.. white to positive. black and red to battery. worked fine.



[Cory Cooper]

I ended up just wiring up the bat- wire and connecting it to the negative part of the 510 connector.. white to positive. black and red to battery. worked fine.

So you had to solder a wire from the 510 - to the board, why would they leave that out ? I think I'm getting the same thing and was wonerimg why there was only one white wire at the top I was looking around for wiring schematic when I found this post



[Portertown]

So you had to solder a wire from the 510 - to the board, why would they leave that out ? I think I'm getting the same thing and was wonerimg why there was only one white wire at the top I was looking around for wiring schematic when I found this post

Go to this web page and it gives you all the info on the SX350 board. How to wire it and how to do the 35 watt upgrade are included along with drawings for the board.


Authentic YiHi SX350 35W Chip!

There are only four connections needed.
