i've got a noisy cricket 2 with a .5 ohm coil ontop with some lghd2's inside. is it safe? and maybe someone can explain the math behind it if it is/isn't. i've read some stuff on the internet but i'm still new to using the calculators. maybe someone can recommend some too?
noob series question
- Thread starter blake charz
- Start date
- th_trl_thread_readers 0
- Status
Best way to learn is go play with Ohms law on Steam Engine. You can enter your resistance and known voltage and see for yourself how it all interacts. It's easy with a single battery mech. In a multi-battery mech, parallel will double the amps but voltage remains the same. In series, the voltage doubles, but the amps remain the same. Here's a nice graphic about it. But understanding how it all gets calculated out is always best. That way you can double check yourself and any unintended bad advice you might hear.
You'll never get a good job in a reputable vape shop with that attitude! Just sell em the most expensive sub-ohm mod and tank on the shelf....
oh i will but if someone comes in with an unregulated question i don't want to be the reason they blow their face off. this industry is having a hard time publicity wise as is. i don't want to add to it
Good for you bud. I see to many people who aren't aware of what they are doing. Educate yourself and others. Vape safe. If your interested in specs of batteries check out mooch.
@blake charz
volts x volts / resistance = wattage
volts / resistance = amps
In (series) regulated variable voltage mode -
If you max the NC2 out with a constant set 6 volts on a 0.5 ohm coil
~ 72 watts and 12 amps
In series unregulated mode -
As there are two batteries in series, the combined voltage is 8.4 volts
~ 141 watts and 17 amps
In parallel unregulated mode -
In parallel mode you will only realize 4.2 volts, but with a much larger usable amp pool of 50 amps with the HD2 as it has a 25 amp CDR. So to get comparable power levels you need a much lower resistance coil.
~ 35 watts and 8.4 amps (split over the two cells)
So you are well under budget with any of those configurations with that resistance coil and those batteries. You could even use a 20 amp cell like the Samsung 30Q or LG HG2 and get 3000 mAh rather that 2000 mAh
You can also use steam-engine to do your working out
Ohm's law | Steam Engine | free vaping calculators
Battery drain | Steam Engine | free vaping calculators
volts x volts / resistance = wattage
volts / resistance = amps
In (series) regulated variable voltage mode -
If you max the NC2 out with a constant set 6 volts on a 0.5 ohm coil
~ 72 watts and 12 amps
In series unregulated mode -
As there are two batteries in series, the combined voltage is 8.4 volts
~ 141 watts and 17 amps
In parallel unregulated mode -
In parallel mode you will only realize 4.2 volts, but with a much larger usable amp pool of 50 amps with the HD2 as it has a 25 amp CDR. So to get comparable power levels you need a much lower resistance coil.
~ 35 watts and 8.4 amps (split over the two cells)
So you are well under budget with any of those configurations with that resistance coil and those batteries. You could even use a 20 amp cell like the Samsung 30Q or LG HG2 and get 3000 mAh rather that 2000 mAh
You can also use steam-engine to do your working out
Ohm's law | Steam Engine | free vaping calculators
Battery drain | Steam Engine | free vaping calculators
Last edited:
@blake charz
volts x volts / resistance = wattage
volts / resistance = amps
In (parallel) regulated variable voltage mode -
If you max the NC2 out with a constant set 6 volts on a 0.5 ohm coil
~ 72 watts and 12 amps
In parallel unregulated mode -
As there are two batteries in series, the combined voltage is 8.4 volts
~ 141 watts and 17 amps
In series unregulated mode -
In parallel mode you will only realize 4.2 volts, but with a much larger usable amp pool of 50 amps with the HD2 as it has a 25 amp CDR. So to get comparable power levels you need a much lower resistance coil.
~ 35 watts and 8.4 amps (split over the two cells)
So you are well under budget with any of those configurations with that resistance coil and those batteries. You could even use a 20 amp cell like the Samsung 30Q or LG HG2 and get 3000 mAh rather that 2000 mAh
You can also use steam-engine to do your working out
Ohm's law | Steam Engine | free vaping calculators
Battery drain | Steam Engine | free vaping calculators
@sonicbomb , just to clarify, what you have under parallel is series and the reverse for series. Both are accurate but it might be clearer to a reader if reversed as parallel under parallel.
And to the OP, remember, all these calculations are being done on fully charged batteries. Once you start vaping them down, the voltage will drop. that's one reason why some folks will calculate at a battery's nominal voltage of 3.7V
Just remember its perfectly okay to say "I dont know" to a customer's question, rather than parroting information you don't really understand.
Just be honest and you'll be head and shoulders above most vape store employees.

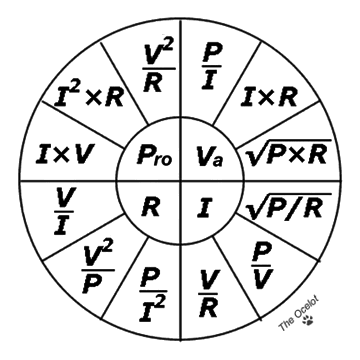

I got this chart here from The Ocelot , it's great
Enviado desde mi iPhone utilizando Tapatalk
Enviado desde mi iPhone utilizando Tapatalk
If you spin it counter clockwise it takes you back in time.[emoji2]I got this chart here from The Ocelot , it's great
Enviado desde mi iPhone utilizando Tapatalk
Sent from my SAMSUNG-SM-G870A using Tapatalk
Sorry, already tried and did not happen. [emoji23]
But works great to learn ohms law and to calculate wattage
An also has great looks
Enviado desde mi iPhone utilizando Tapatalk
This is the simple chart for Ohm's Law but the other introduces wattage
Enviado desde mi iPhone utilizando Tapatalk
Enviado desde mi iPhone utilizando Tapatalk
